Stainless Steel Milk Pouch Packing Machine , PLC Dry Powder Filling Equipment

Name: Stainless Steel Milk Pouch Packing Machine PLC Dry Powder Filling Equipment
Brand: TOPSPACK
Price: 1 USD

China Stainless Steel Milk Pouch Packing Machine , PLC Dry Powder Filling Equipment wholesale

Brand Name : TOPSPACK

Model Number : TP-PF-A14

Certification : CE SGS

Place of Origin : Shanghai

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 20 sets per month

Delivery Time : 25 work days

Packaging Details : seaworthy plywood case

Control system : PLC & touch screen

Filling range : 10-5000g

Hopper volume : 50L split hopper

Weight dosing : By auger

Filling accuracy : ≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5%

Power supply : 3P AC208-415V 50/60Hz

Contact Now

Bottle or bag Semi Automatic Powder Filling Machine Stainless steel 304 food Grade material

General Description :

This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.

Features :

Lathing auger screw to guarantee the precise filling accuracy
PLC control and touch screen display
Servo motor drives screw to guarantee stable performance
Quick disconnecting hopper could be washed easily without tools
Can be setting to semi-auto filling by pedal switch or auto filling
Full stainless steel 304 material
Save 20 sets of formula inside the machine for later use
Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
Multi language interface

Specification :

Model	TP-PF-A14
Control system	PLC & touch screen
Hopper volume	50L split hopper
Filling weight	10-5000g
Weight dosing	By auger
Filling accuracy	≤ 100g, ≤±2%; 100-500g, ≤±1%; ≥500g, ≤±0.5%
Filling speed	40-120 times per min
Power supply	3P AC208-415V 50/60Hz
Total Power	0.93kw
Total weight	160kg
Overall Dimensions	1140×970×2200mm

Configuration List :

No.	Name	Pro.	Brand
1	PLC	Taiwan	DELTA
2	Touch Screen	Taiwan	DELTA
3	Servo motor	Taiwan	DELTA
4	Servo driver	Taiwan	DELTA
5	Switching powder supply		Schneider
6	Emergency switch		Schneider
7	Contactor		Schneider
8	Relay		omron
9	Proximity switch	Korea	Autonics
10	Level sensor	Korea	Autonics

Detailed photos:

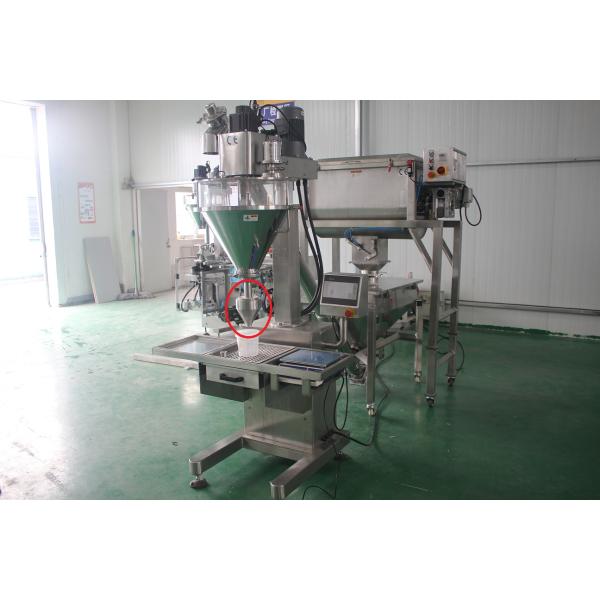

A: split type hopper (simple to open the hopper and change different No. auger)
